WatchGuard
WatchGuard AP432 Access Point on a Monthly Subscription
WatchGuard AP432 Access Point on a Monthly Subscription
Couldn't load pickup availability
Wi-Fi 6 Access Points
Indoor Access Points
WatchGuard AP130
Ideal for supporting low-density minimal indoor environments. Includes 2x2, 4 internal antennas, a maximum data rate of 1.2 Gbps, and one PoE+ port up to 1 Gbps.

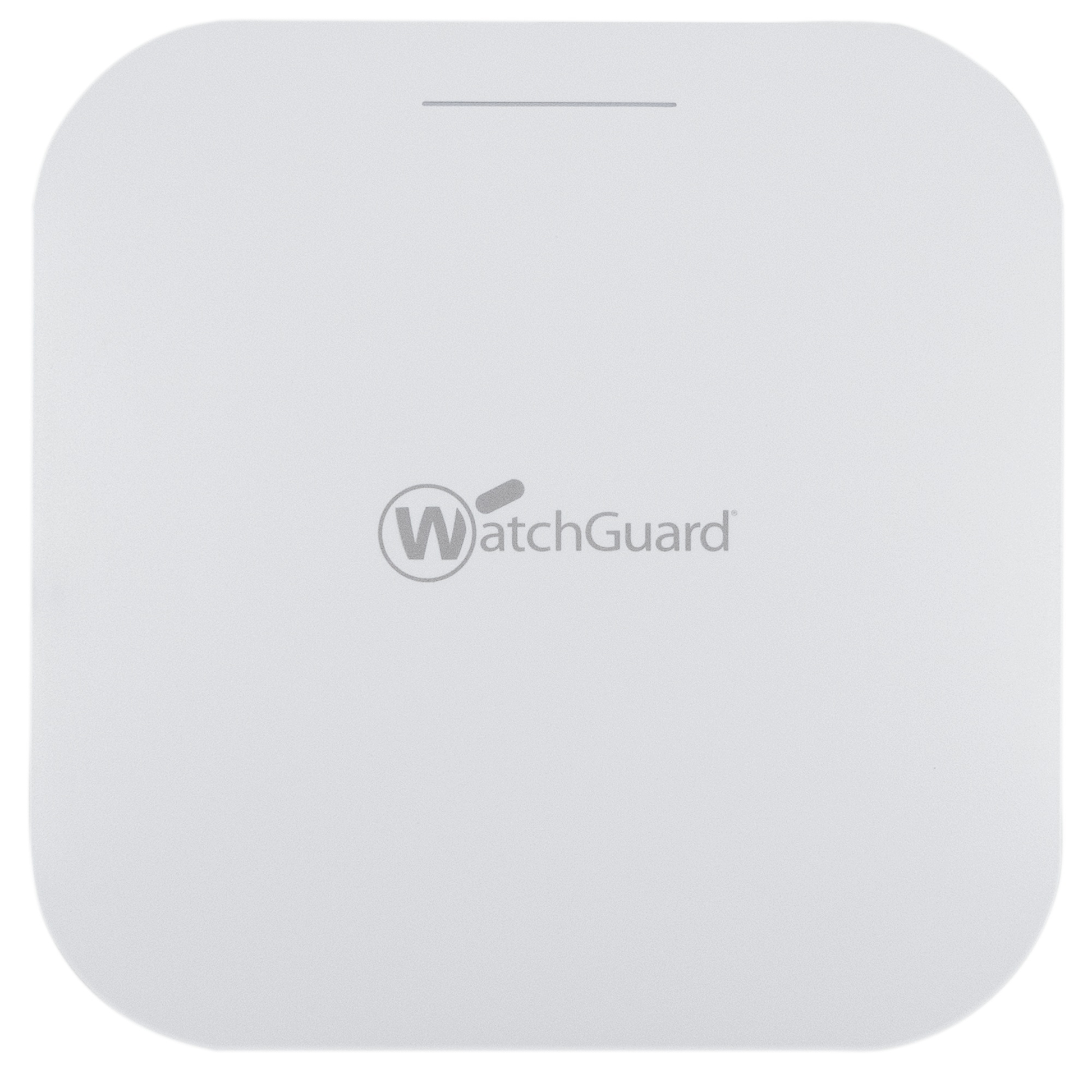

WatchGuard AP330
Optimal for mid-density indoor environments. Equipped with 2x2 scanning, 7 internal antennas, a maximum data rate of 1.2 Gbps, and one PoE+ port up to 2.5 Gbps.

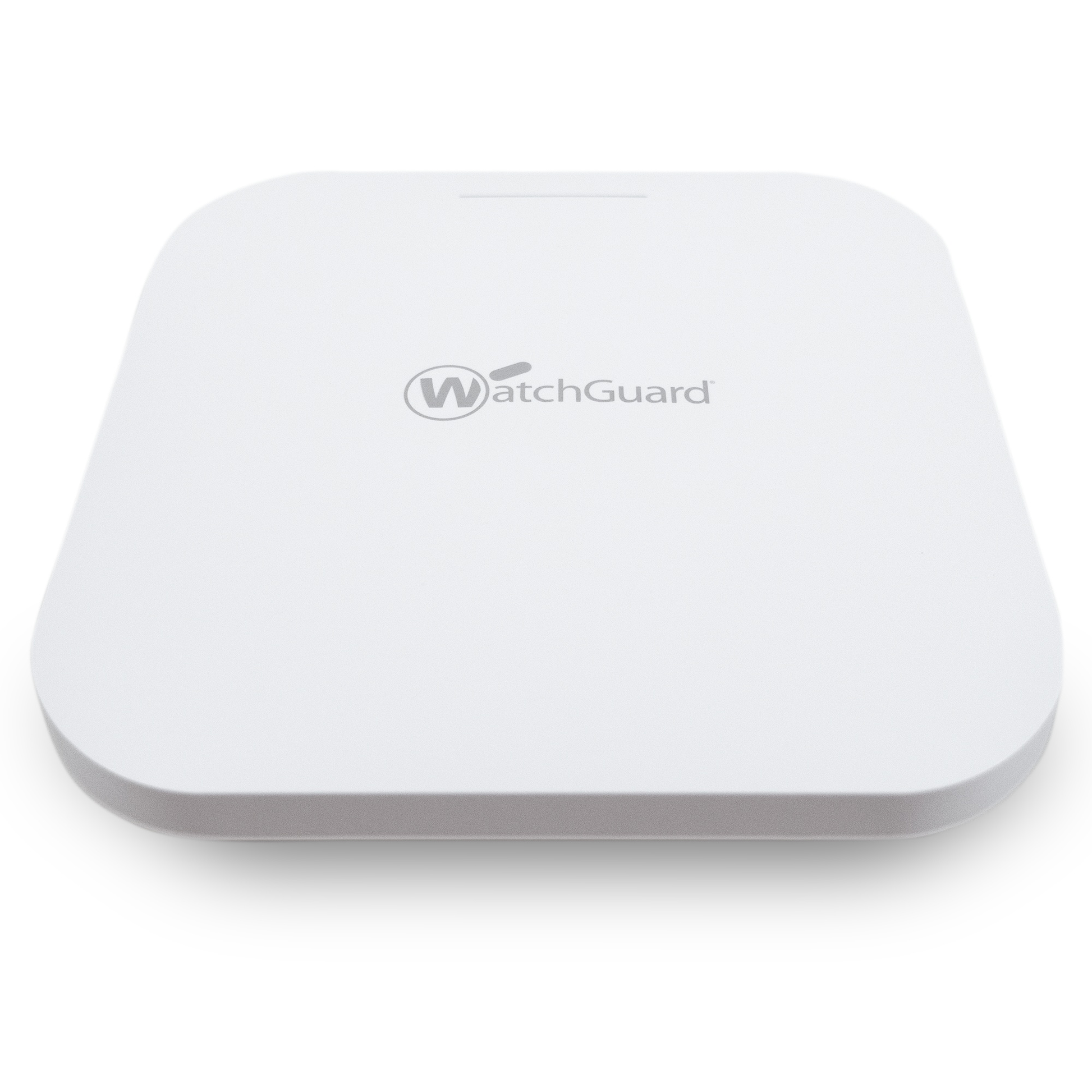

WatchGuard AP432
A powerfully robust solution for high-density indoor environments. Built with 4x4 radios, 8 internal antennas, a maximum data rate of 2.4 Gbps, and one PoE+ port supporting up to 2.5 Gbps.
Outdoor/Rugged Access Points
WatchGuard AP332CR
IP67-rated for mid-density outdoor/rugged deployments. Includes a 2x2 radio with 4 external antennas, a maximum data rate of 1.2 Gbps, and one PoE+ port up to 2.5 Gbps.
WatchGuard AP430CR
Perfect for high-density rugged deployments. Includes 2x2 scanning, 6 external N-Type connectors, maximum data rate of 2.4 Gbps, and 5 GbE and 1 GbE ports.
Compare Wi-Fi 6 Models
Indoor Access Points
|
AP130 |
AP330 |
AP432 |
|
|
Recommended |
Low-density for indoor environments such as small offices, remote workers, and meeting rooms |
Medium-density for retail, point of sale systems in retail, K-12 schools, and offices |
High-density indoor environments, including expansive offices, large corporate or education campuses |
|
Radios & Streams |
Wi-Fi 6 2x2 |
Wi-Fi 6 2x2 |
Wi-Fi 6 4x4 |
|
Number of Antennas |
4 Internal Omnidirectional |
6 Internal Omnidirectional |
8 Internal Omnidirectional |
|
Maximum Data Rate* |
1201 Mbps / 574 Mbps |
1201 Mbps / 574 Mbps |
2402 Mbps / 1148 Mbps |
|
Ports |
1 x 1Gbps (PoE+) |
1 x 2.5 Gbps (PoE+) |
1 x 2.5 Gbps (PoE+) |
|
Power Consumption |
Peak: 10.9W |
Peak: 15.9W |
Peak: 19.5W |
|
Mounting Options |
T-Bar Ceiling |
T-Bar Ceiling |
T-Bar Ceiling |
|
Optional Accessories |
Universal Standing Bracket |
Universal Standing Bracket |
Universal Standing Bracket |
|
|
|
|
|
Outdoor/Rugged Access Points
|
AP332CR |
AP430CR |
|
|
Recommended |
Medium-density for rugged or outdoor environments such as commercial retail, K-12 schools, manufacturing, and offices |
High-density for rugged or outdoor environments such as expansive campuses, manufacturing, stadiums, and hospital facilities |
|
Radios & Streams |
Wi-Fi 6 2x2 |
Wi-Fi 6 4x4 |
|
Number of Antennas |
4 External Omnidirectional |
6 External N-Type Connectors |
|
Maximum Data Rate* |
1201 Mbps / 574 Mbps |
2402 Mbps (4x4) / 574 Mbps (2x2) |
|
Ports |
1 x 2.5 Gbps (PoE+) |
1 x 5 Gbps (PoE+) |
|
Power Consumption |
Peak: 15.9W |
Peak: 21.3W |
|
Mounting Options |
Flat Surface Mount |
Flat Surface Mount |
|
Optional Accessories |
802.3at PoE+ Injector |
802.3at PoE+ Injector |
|
|
|
|
*Country-specific restrictions apply
Certifications
Wireless
- FCC, IC, CE, MIC
Safety
- NRTL/C, CB, CE
Hazardous Substance Compliance
- WEEE, RoHS
